MULTIFREEZE ICONA HYBRID

TECHNICAL SPECIFICATIONS

MF ICONA HYBRID		8	12
Quantity per cycle	Kg	1,5 – 8	1,5 – 12
Cooling		Hybrid	Hybrid
Installed power	kW	5,5	8
Electrical supply		400 / 3 / 50	400 / 3 / 50
Dimensions W x D x H	cm	53 x 90 x 145	53 x 90 x 145

Description

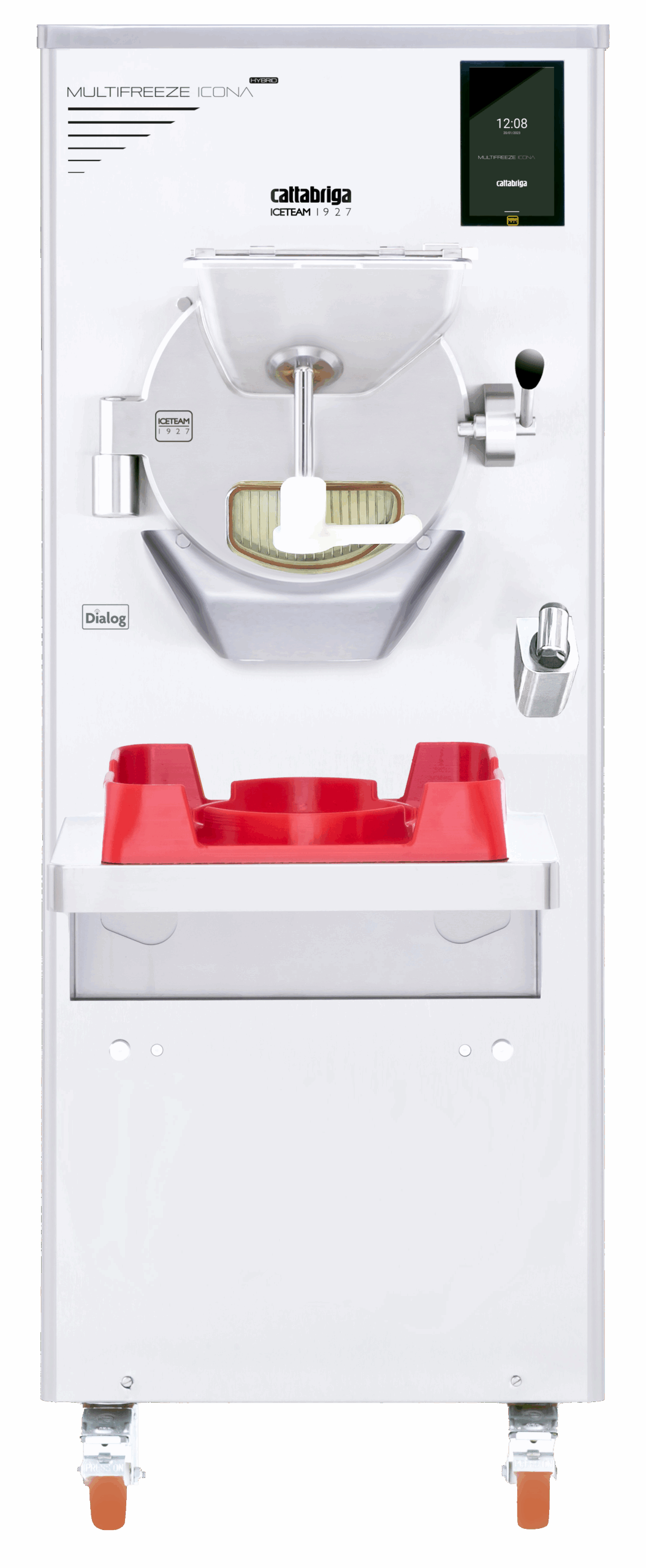

Multifreeze Icona Hybrid is the high-tech professional horizontal gelato batch freezer by Cattabriga.

Thanks to its intuitive LCD Touchscreen display and the smart interface developed in collaboration with our Gelato Chefs, it simplifies and enhances the machine’s operation.

The Icona system allows you to switch between operations, manage recipes, preferences, and notifications with just a few taps on the screen.

Hybrid – Save up to 80% of water*

With the patented Hybrid system, Multifreeze Icona allows for significant water savings by simultaneously using two condensation methods.

Save your recipes

With Multifreeze Icona, you can save your recipes in a revolutionary way: create the steps to follow and customize on-screen notifications for an easier workflow than ever before.

Control the extraction

Set the number of gelato containers you want to extract, and Multifreeze Icona will adjust the speed to facilitate container replacement, alerting you with auditory signals.

Insulated door

The patented Revo door combines the ease of use of front loading with an innovative insulation system that optimizes freezing times.

Dialog

Vario Icona is equipped with the Dialog system, which enables constant monitoring of the machine and its production cycles. Through the M2M Dialog app, you can also download manuals and videos, activate the warranty extension, and contact customer service.

The dual inverter system adjusts speed and regulates refrigeration power based on the type and quantity of mixture introduced, optimizing production times and reducing electricity and water consumption by up to 30% compared to previous generation batch freezers.

Front loading: The hopper of the Multifreeze Icona is designed in a special shape that facilitates receiving the mixture, while the mouth of the REVO door eases its exit.

Revo Door: Iceteam 1927 combines Cattabriga’s traditional round shape with the ease of front loading and an innovative insulation system. The door is complemented by a removable stainless steel upper grill, which can be washed separately, making it easier to handle particularly dense and difficult mixtures.

Plate condenser: This type of condenser elevates the efficiency of heat exchange to unprecedented levels and provides tangible savings for the customer. Combined with the Multifreeze system, and paired with proper machine maintenance, the savings in water and electricity reach new heights, aligning MULTIFREEZE ICONA perfectly with contemporary needs.

* Water consumption data related to laboratory tests (at a temperature of 23°C) performed on the Multifreeze Icona Hybrid 8 model compared to the Multifreeze 8 Pro.

Download documnts

DWG:
MULTIFREEZE 8 ICONA HYBRID
MULTIFREEZE 12 ICONA HYBRID
