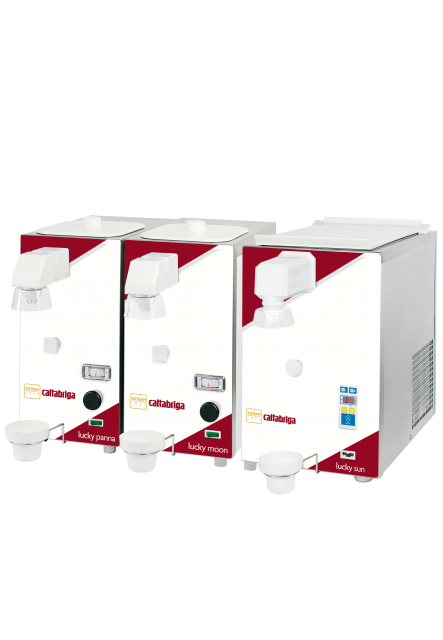

LUCKY

Lucky_base_1000__2335px_84701-443x640

TECHNICAL SPECIFICATIONS

LUCKYMOONPANNASUN
Hopper capacitylt225
Hourly productionlt105150240
Installed powerkW0,50,7215
Electrical supply400 / 3 / 50400 / 3 / 50400 / 3 / 50
Dimensions W x D x Hcm60 x 77 x 15360 x 77 x 15360 x 77 x 153

Descriptions

Built with reduced dimensions (220 x 520 x 460) the ICETEAM 1927 whipped cream machines are extremely easy to clean and provide a high level of performance for any type of natural or vegetable­ based cream, be it fresh or UHT (long life) cream.

The fresh cream is kept preserved at the ideai temperature in a stainless steel tank that is refrigerated and equipped with a thermostat, where it is also possible to view the thermometer.
Only at the moment of request, by pushing the special switch, a patented pump suctions and then pushes the air and cream into a steel labyrinth (texturizer) where the mixture acquires an increase in volume. Once the increase of volume reaches over 200% the cream is dispensed through a spigot with a ragged spout refrigerated up to the exit point.
A non-return valve prevents the whipped cream from returning to the tank.

Download documents

DWG:
LUCKY
